2.1: Operations on vectors

In the previous section, we defined a vector v⃗∈Rn\vec{v}\in \mathbb{R}^n formally as an ordered array of real numbers. While this provides a useful way to organize data or represent coordinates, the true mathematical utility of vectors arises from how they interact with one another.

In this section, we introduce the two fundamental algebraic operations that allow us to manipulate these arrays: vector addition and scalar multiplication.

Addition

Algebraic definition

Vector addition is an operation between two vectors of the same dimension, where we ‘add each entry by entry’. Here are some examples of how to add to vectors:

[12]+[3−1]=[41],[10−2]+[253]=[351].\begin{bmatrix} 1 \\ 2 \end{bmatrix} + \begin{bmatrix} 3 \\ -1 \end{bmatrix} = \begin{bmatrix} 4 \\ 1 \end{bmatrix}, \qquad \begin{bmatrix} 1 \\ 0 \\ -2 \end{bmatrix} + \begin{bmatrix} 2 \\ 5 \\ 3 \end{bmatrix} = \begin{bmatrix} 3 \\ 5 \\ 1 \end{bmatrix}.
(1)

Generally we can define addition as:

[x1x2⋮xn]+[y1y2⋮yn]=[x1+y1x2+y2⋮xn+yn].\begin{bmatrix} x_1 \\ x_2 \\ \vdots \\ x_n \end{bmatrix} + \begin{bmatrix} y_1 \\ y_2 \\ \vdots \\ y_n \end{bmatrix} = \begin{bmatrix} x_1 + y_1 \\ x_2 + y_2 \\ \vdots \\ x_n + y_n \end{bmatrix}.
(2)

Geometric interpretation

A good way to think about vector addition (at least in dimensions 2 and 3) is to view the vectors as arrows and form a triangle. We obtain the sum u⃗+v⃗\vec u + \vec v by drawing the vector u⃗\vec u, drawing the vector v⃗\vec v at the endpoint of u⃗\vec u, and connecting the two endpoints.

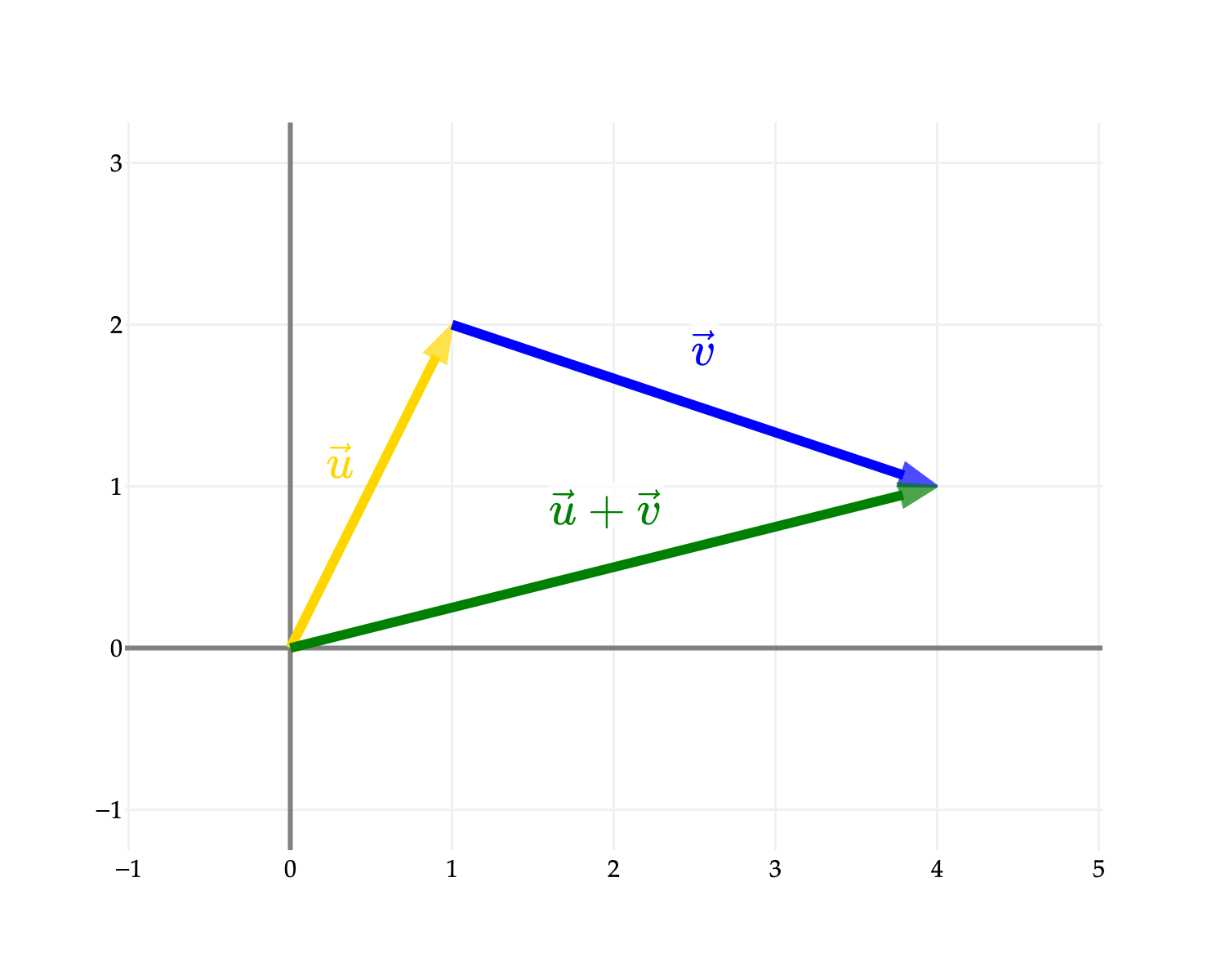

Here is an example of this viewpoint for:

u⃗=[12], v⃗=[3−1], u⃗+v⃗=[41].\vec u = \begin{bmatrix} 1 \\ 2 \end{bmatrix},\ \vec v = \begin{bmatrix} 3 \\ -1 \end{bmatrix},\ \vec u + \vec v = \begin{bmatrix} 4 \\ 1 \end{bmatrix}.
(3)
from IPython.display import display, HTML
import plotly.io as pio
import numpy as np

# Set default renderer to high-DPI static image
pio.renderers.default = "png"
display(HTML(
    '<script type="text/javascript" async src="https://cdnjs.cloudflare.com/ajax/libs/mathjax/2.7.1/MathJax.js?config=TeX-MML-AM_SVG"></script>'
))

# ---
from utils import plot_vectors_non_origin

# Define vectors in the format: (((start_x, start_y), (end_x, end_y)), color, label)
vectors = [
    (((0, 0), (1, 2)), 'gold', r'$\vec u$'),              # u starts at origin
    (((1, 2), (4, 1)), 'blue', r'$\vec v$'),                # v starts at tip of u
    (((0, 0), (4, 1)), 'green', r'$\vec u + \vec v$')       # u+v starts at origin, ends at tip of v
]

fig = plot_vectors_non_origin(vectors, vdeltax=0.2, vdeltay=0.4)

fig.update_layout(width=500, height=400, yaxis_scaleanchor="x")
fig.update_xaxes(range=[-1, 5], tickvals=np.arange(-2, 7))
fig.update_yaxes(range=[-1, 3], tickvals=np.arange(-2, 5))

fig.show(scale=3)
Loading...
Image produced in Jupyter

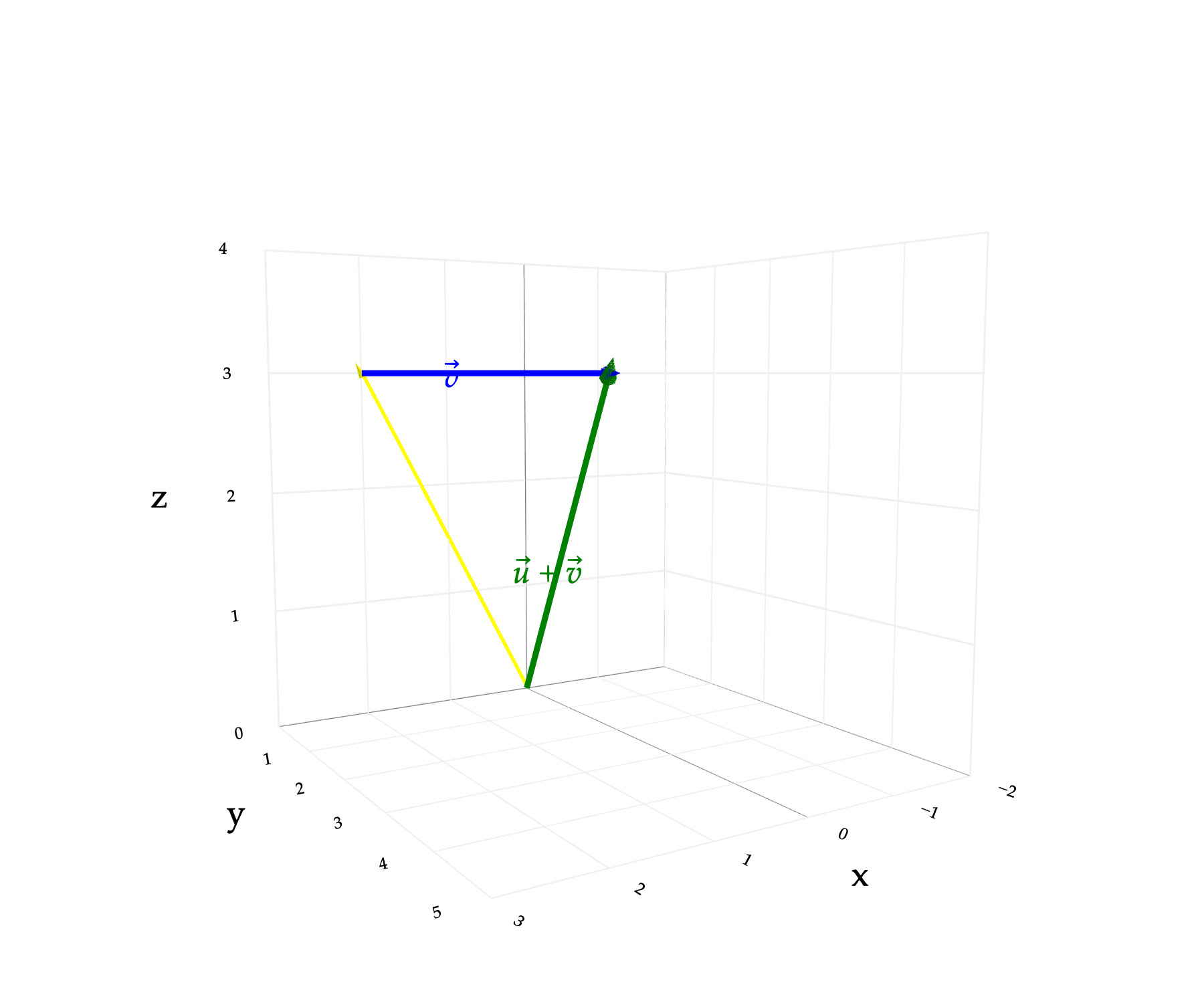

This same interpretation of adding two vectors works for vectors in three dimensions as well. We form a triangle by connecting the two vectors in 3D space.

from IPython.display import display, HTML
import plotly.io as pio
import numpy as np

# Set default renderer to high-DPI static image
pio.renderers.default = "png"
display(HTML(
    '<script type="text/javascript" async src="https://cdnjs.cloudflare.com/ajax/libs/mathjax/2.7.1/MathJax.js?config=TeX-MML-AM_SVG"></script>'
))

# ---
from utils import plot_vectors_non_origin

# Define 3D vectors: (((start_x, start_y, start_z), (end_x, end_y, end_z)), color, label)
# u = (2, 2, 1), v = (-1, 2, 2), u+v = (1, 4, 3)
vectors = [
    (((0, 0, 0), (2, 0, 3)), 'yellow', '<i>u</i>\u20D7'),
    (((2, 0, 3), (2, 5, 3)), 'blue', '<i>v</i>\u20D7'),
    (((0, 0, 0), (2, 5, 3)), 'green', '<i>u</i>\u20D7 + <i>v</i>\u20D7')
]

# Adjust offsets for the 3D labels
fig = plot_vectors_non_origin(vectors, vdeltax=0.2, vdeltay=0.2, vdeltaz=0.2)

# Frame the grid nicely around these specific coordinates
fig.update_layout(
    width=600,
    height=500,
    scene=dict(
        xaxis=dict(range=[-2, 3], dtick=1),
        yaxis=dict(range=[0, 5], dtick=1),
        zaxis=dict(range=[0, 4], dtick=1),
        aspectratio=dict(x=1, y=1, z=1)
    )
)

fig.show(scale=3)
Loading...
Image produced in Jupyter

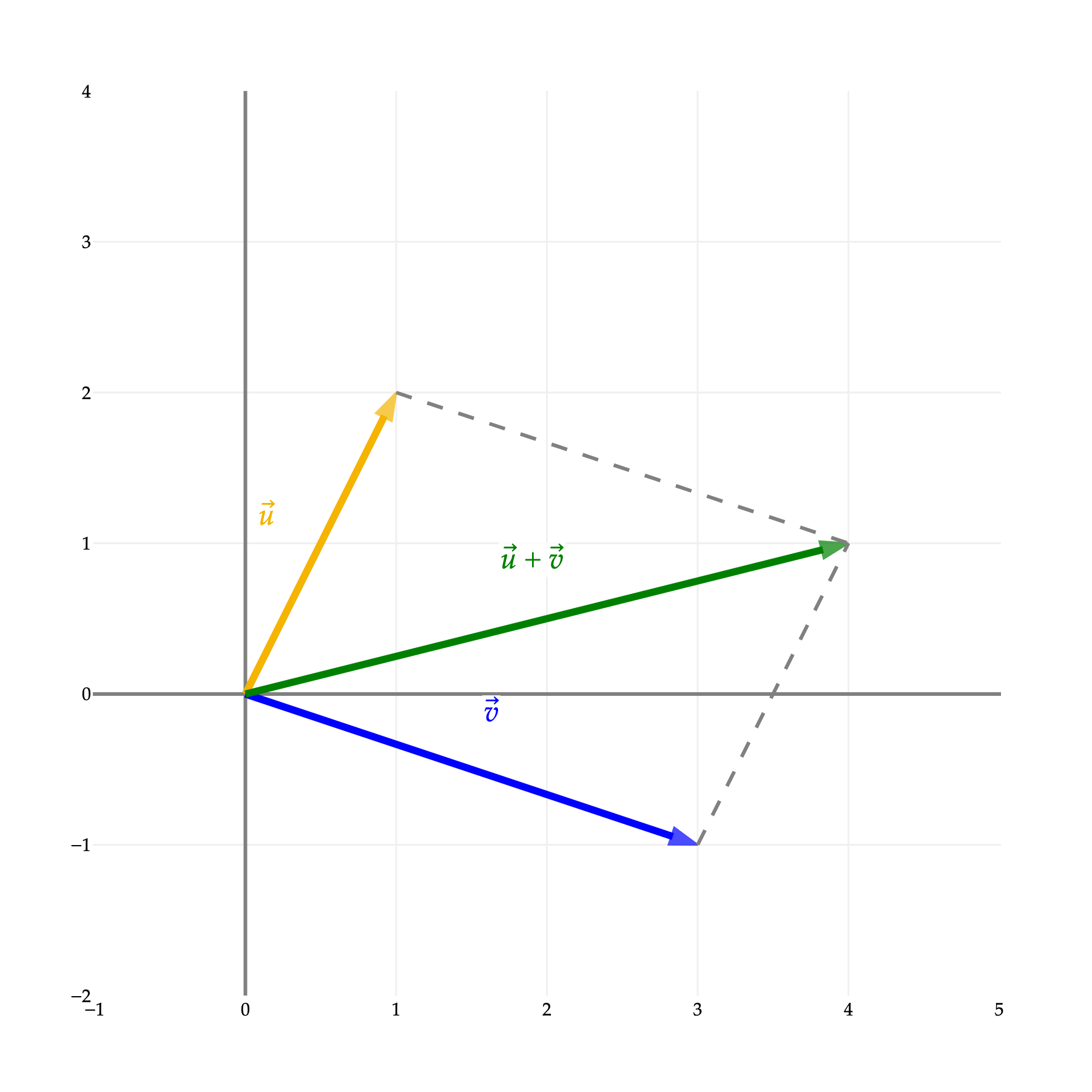

A nearly identical viewpoint -- but which will be more helpful when we deal with subtracting two vectors -- is to put both vectors u⃗\vec u and v⃗\vec v be starting at the origin, and interpret u⃗+v⃗\vec u + \vec v as the diagonal of the parallelogram formed by the two vectors.

import plotly.io as pio
import plotly.graph_objects as go
import numpy as np

# Set default renderer to high-DPI static image
pio.renderers.default = "png"

# ---
from utils import plot_vectors_non_origin

# Define the primary vectors and their resultant sum starting from the origin
vectors = [
    (((0, 0), (1, 2)), '#f4b400', '<i>u</i>\u20D7'),
    (((0, 0), (3, -1)), 'blue', '<i>v</i>\u20D7'),
    (((0, 0), (4, 1)), 'green', '<i>u</i>\u20D7 + <i>v</i>\u20D7')
]

# Generate the figure using the custom utility
fig = plot_vectors_non_origin(vectors, vdeltax=0.4, vdeltay=0.4)

# Add dashed lines to explicitly show the parallelogram
# 1. Edge parallel to v, starting at the tip of u (1, 2) and ending at the sum (4, 1)
fig.add_trace(go.Scatter(
    x=[1, 4], y=[2, 1], mode='lines',
    line=dict(color='gray', width=2, dash='dash'),
    showlegend=False, hoverinfo='skip'
))

# 2. Edge parallel to u, starting at the tip of v (3, -1) and ending at the sum (4, 1)
fig.add_trace(go.Scatter(
    x=[3, 4], y=[-1, 1], mode='lines',
    line=dict(color='gray', width=2, dash='dash'),
    showlegend=False, hoverinfo='skip'
))

# Format the layout to keep the grid perfectly square
fig.update_layout(width=600, height=600, yaxis_scaleanchor="x")

# Set the grid to comfortably frame the entire parallelogram
fig.update_xaxes(range=[-1, 5], tickvals=np.arange(-1, 6))
fig.update_yaxes(range=[-2, 4], tickvals=np.arange(-2, 5))

# Export statically
fig.show(scale=3)
Image produced in Jupyter

Associativity of addition

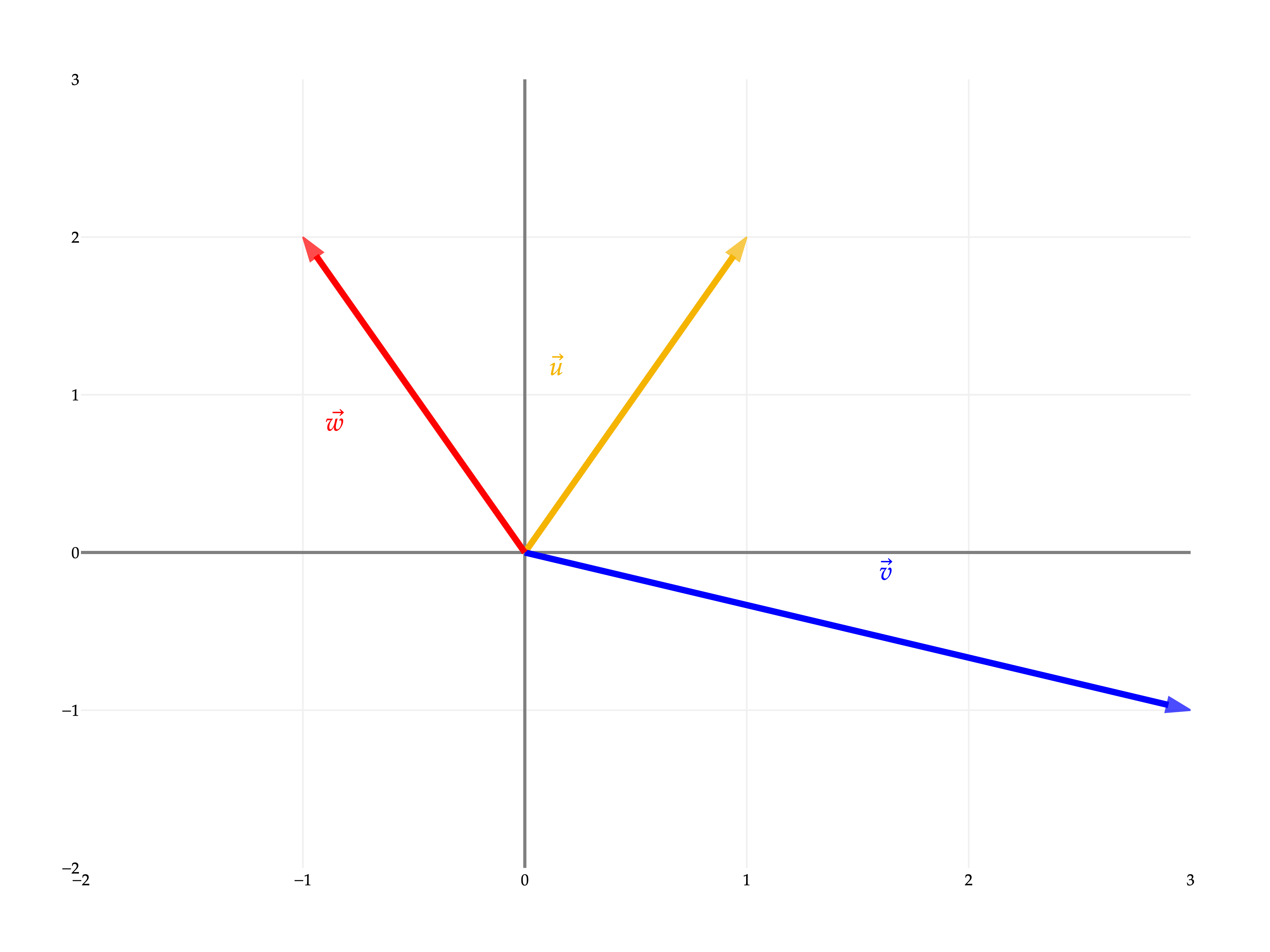

How about adding three vectors u⃗\vec u, v⃗\vec v and w⃗\vec w? We can iterate the process above, first forming the vector u⃗+v⃗\vec u + \vec v as a triangle and then adding w⃗\vec w to it. This will also show us that just like the usual addition for numbers, the order in which we add the three vectors does not matter. This is called the associativity of vector addition. Let’s demonstrate this with another example. Take the vectors

u⃗=[12], v⃗=[3−1], w⃗=[−12].\vec u = \begin{bmatrix} 1 \\ 2 \end{bmatrix},\ \vec v = \begin{bmatrix} 3 \\ -1 \end{bmatrix},\ \vec w = \begin{bmatrix} -1 \\ 2 \end{bmatrix}.
(4)
import plotly.io as pio
import plotly.graph_objects as go
import numpy as np

# Set default renderer to high-DPI static image (Kaleido safe)
pio.renderers.default = "png"

# ---
from utils import plot_vectors_non_origin

# 1. Vectors u, v, w all emitting from the origin
vectors_1 = [
    (((0, 0), (1, 2)), '#f4b400', '<i>u</i>\u20D7'),
    (((0, 0), (3, -1)), 'blue', '<i>v</i>\u20D7'),
    (((0, 0), (-1, 2)), 'red', '<i>w</i>\u20D7')
]

fig1 = plot_vectors_non_origin(vectors_1, vdeltax=0.4, vdeltay=0.4)

fig1.update_xaxes(range=[-2, 3], tickvals=np.arange(-2,4))
fig1.update_yaxes(range=[-2, 3], tickvals=np.arange(-2,4))

fig1.show(scale=3)
Image produced in Jupyter

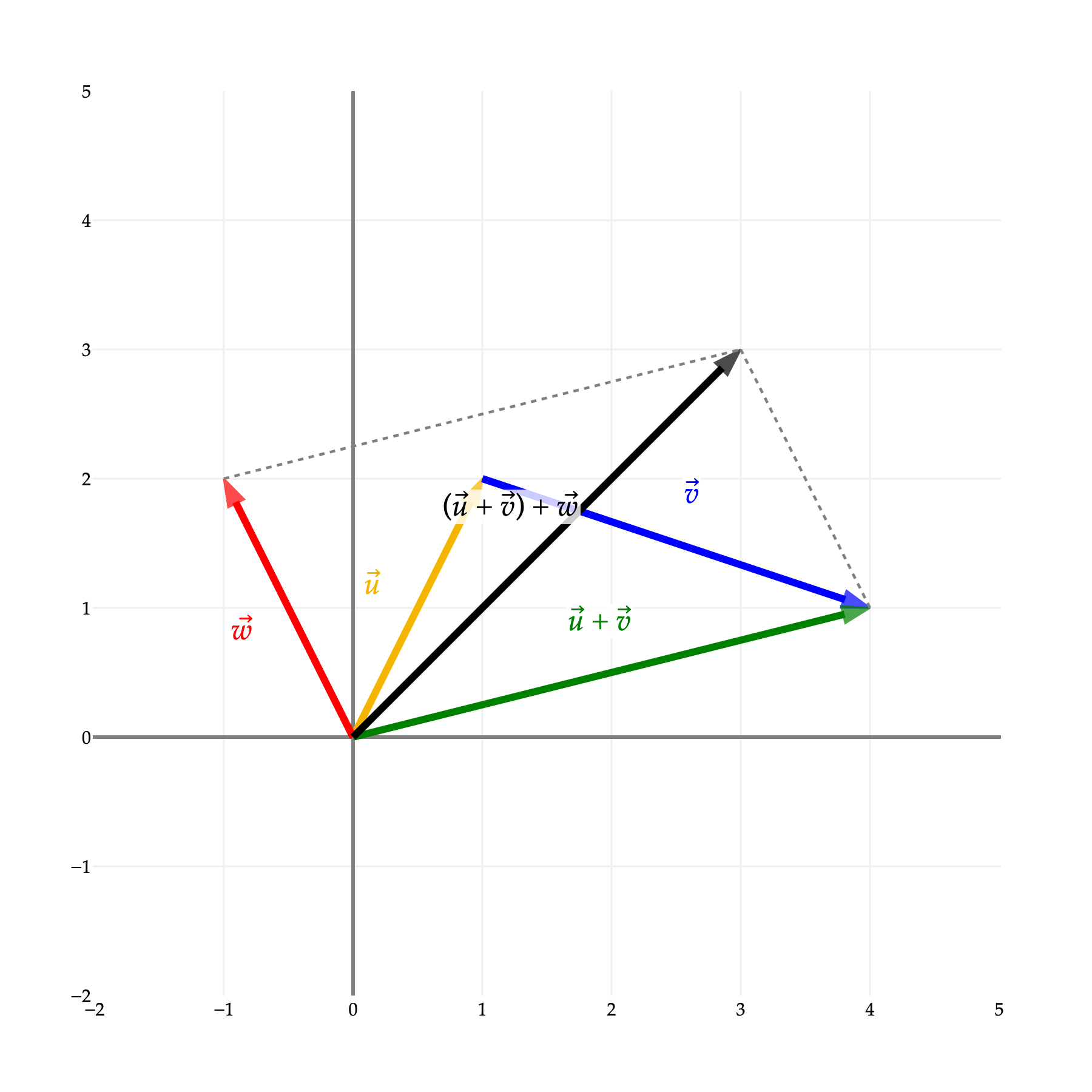

Let us add the two vectors u⃗\vec u and v⃗\vec v first, and then add w⃗\vec w. From this we obtain

(u⃗+v⃗)+w⃗=[41]+[−12]=[33].(\vec u + \vec v) + \vec w = \begin{bmatrix}4\\1\end{bmatrix} + \begin{bmatrix}-1\\2\end{bmatrix} = \begin{bmatrix}3\\3\end{bmatrix}.
(5)
# 2. Geometric addition showing (u+v) first, then adding w
vectors_2 = [
    (((0, 0), (1, 2)), '#f4b400', '<i>u</i>\u20D7'),
    (((1, 2), (4, 1)), 'blue', '<i>v</i>\u20D7'),                       # v at tip of u
    (((0, 0), (4, 1)), 'green', '<i>u</i>\u20D7 + <i>v</i>\u20D7'),       # Sum u+v
    (((0, 0), (-1, 2)), 'red', '<i>w</i>\u20D7'),                         # w at tip of u+v
    (((0, 0), (3, 3)), 'black', '(<i>u</i>\u20D7 + <i>v</i>\u20D7) + <i>w</i>\u20D7') # Total sum
]

fig2 = plot_vectors_non_origin(vectors_2, vdeltax=0.4, vdeltay=0.4)

# Add dashed guide line from origin to w just for reference if they need to see w's original trajectory
fig2.add_trace(go.Scatter(
    x=[4, 3], y=[1, 3], mode='lines',
    line=dict(color = 'grey', width=1.5, dash='dot'), showlegend=False, hoverinfo='skip'
))
fig2.add_trace(go.Scatter(
    x=[-1, 3], y=[2, 3], mode='lines',
    line=dict(color = 'grey',width=1.5, dash='dot'), showlegend=False, hoverinfo='skip'
))

fig2.update_layout(width=600, height=600, yaxis_scaleanchor="x")
fig2.update_xaxes(range=[-2, 5], tickvals=np.arange(-2, 6))
fig2.update_yaxes(range=[-2, 5], tickvals=np.arange(-2, 6))

fig2.show(scale=3)
Image produced in Jupyter

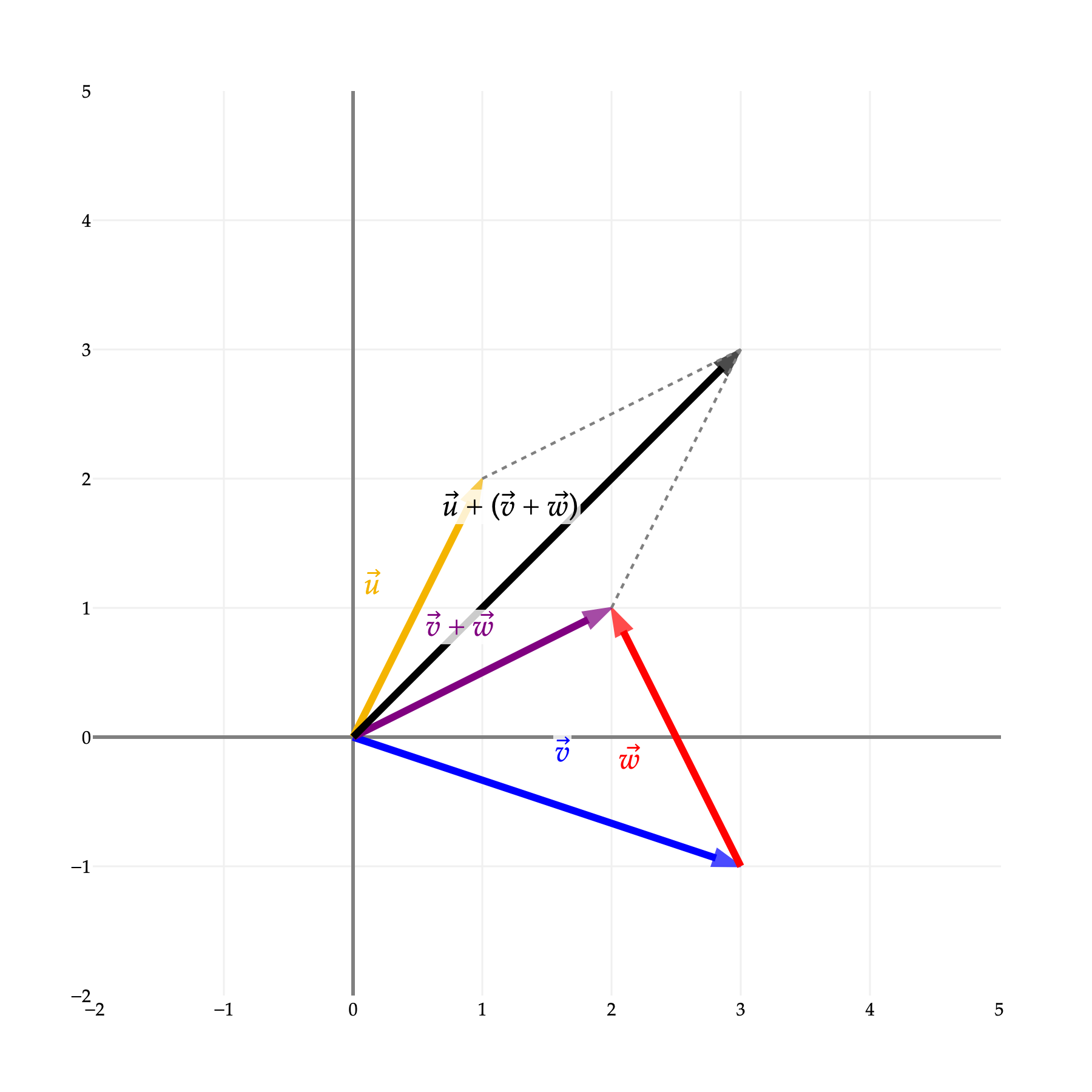

This time, let us add the vectors v⃗\vec v and w⃗\vec w first, and then add u⃗\vec u. From this we obtain the same result:

u⃗+(v⃗+w⃗)=[−12]+[−12]=[−12].\vec u + (\vec v + \vec w) = \begin{bmatrix}-1\\2\end{bmatrix} + \begin{bmatrix}-1\\2\end{bmatrix} = \begin{bmatrix}-1\\2\end{bmatrix}.
(6)
# 3. Geometric addition showing (v+w) first, then adding it to u
vectors_3 = [
    (((0, 0), (3, -1)), 'blue', '<i>v</i>\u20D7'),                       # v at origin
    (((3, -1), (2, 1)), 'red', '<i>w</i>\u20D7'),                         # w at tip of v
    (((0, 0), (2, 1)), 'purple', '<i>v</i>\u20D7 + <i>w</i>\u20D7'),      # Sum v+w
    (((0, 0), (1, 2)), '#f4b400', '<i>u</i>\u20D7'),                     # u at origin
    (((0, 0), (3, 3)), 'black', '<i>u</i>\u20D7 + (<i>v</i>\u20D7 + <i>w</i>\u20D7)') # Total sum
]

fig3 = plot_vectors_non_origin(vectors_3, vdeltax=0.4, vdeltay=0.4)

fig3.add_trace(go.Scatter(
    x=[2, 3], y=[1, 3], mode='lines',
    line=dict(color = 'grey', width=1.5, dash='dot'), showlegend=False, hoverinfo='skip'
))
fig3.add_trace(go.Scatter(
    x=[1, 3], y=[2, 3], mode='lines',
    line=dict(color = 'grey',width=1.5, dash='dot'), showlegend=False, hoverinfo='skip'
))

fig3.update_layout(width=600, height=600, yaxis_scaleanchor="x")
fig3.update_xaxes(range=[-2, 5], tickvals=np.arange(-2, 6))
fig3.update_yaxes(range=[-2, 5], tickvals=np.arange(-2, 6))

fig3.show(scale=3)
Image produced in Jupyter

Scalar multiplication

Algebraic definition

Scalar multiplication is multiplying a number -- or a scalar, recall -- to a vector of any size. This is done by multiplying the number on every entry. Here is an example where we multiply the scalars 3 and -1 to the vector [12]\begin{bmatrix} 1 \\ 2 \end{bmatrix}:

3[12]=[36],−1[12]=[−1−2].3 \begin{bmatrix} 1 \\ 2 \end{bmatrix} = \begin{bmatrix} 3 \\ 6 \end{bmatrix},\quad -1 \begin{bmatrix} 1 \\ 2 \end{bmatrix} = \begin{bmatrix} -1 \\ -2 \end{bmatrix}.
(7)

More generally, scalar multiplication is defined as follows:

c[x1x2⋮xn]=[cx1cx2⋮cxn].c \begin{bmatrix} x_1 \\ x_2 \\ \vdots \\ x_n\end{bmatrix} = \begin{bmatrix} cx_1 \\ cx_2 \\ \vdots \\ cx_n\end{bmatrix}.
(8)

Geometric interpretation

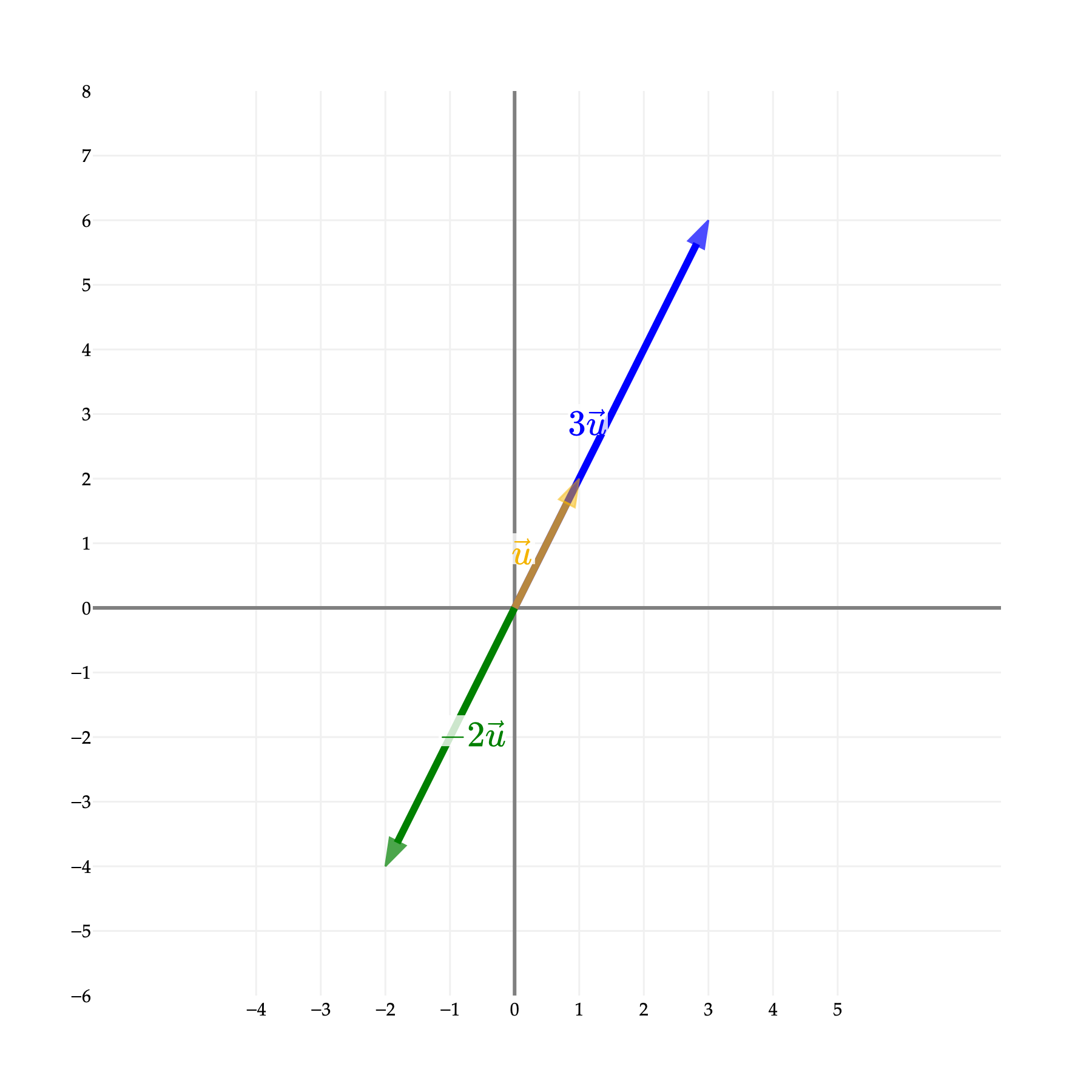

Similar to vector addition, scalar multiplication can also be viewed geometrically. Multiplying a scalar acts on a vector by keeping its direction by stretching its size by the scalar. Let’s visualize this again using the first example we have above.

from IPython.display import display, HTML
import plotly.io as pio
import numpy as np

# Set default renderer to high-DPI static image
pio.renderers.default = "png"
display(HTML(
    '<script type="text/javascript" async src="https://cdnjs.cloudflare.com/ajax/libs/mathjax/2.7.1/MathJax.js?config=TeX-MML-AM_SVG"></script>'
))

# ---
from utils import plot_vectors

# Draw the longer positive vector first, then the shorter one, then the negative one
vectors = [
    ((3, 6), 'blue', r'$3\vec{u}$'),
    ((1, 2), 'rgba(244, 180, 0, 0.75)', r'$\vec{u}$'),
    ((-2, -4), 'green', r'$-2\vec{u}$')
]

# Adjust vdeltax and vdeltay to position the labels
fig = plot_vectors(vectors, vdeltax=0.4, vdeltay=-0.2)

# Lock the aspect ratio so the scaling is visually accurate
# Slightly increased width and height to accommodate the larger spatial range
fig.update_layout(width=600, height=600, yaxis_scaleanchor="x")

# Expanded the grid ranges to frame the new negative coordinates comfortably
fig.update_xaxes(range=[-4, 5], tickvals=np.arange(-4, 6))
fig.update_yaxes(range=[-6, 8], tickvals=np.arange(-6, 9))

fig.show(scale=3)
Loading...
Image produced in Jupyter

Note that we have to be slightly careful about saying that the direction is preserved, since the vector −2u⃗-2\vec u has doubled in size but is pointing exactly opposite of u⃗\vec u. This is what happens in general when we multiply a negative scalar to a vector.

Subtraction of vectors

Now that we have talked about vector addition and scalar multiplication, we can combine the two concepts to define what is means to subtract two vectors. Algebraically, it is simply defined by

u⃗−v⃗=u⃗+(−v⃗).\vec u - \vec v = \vec u + (-\vec v).
(9)

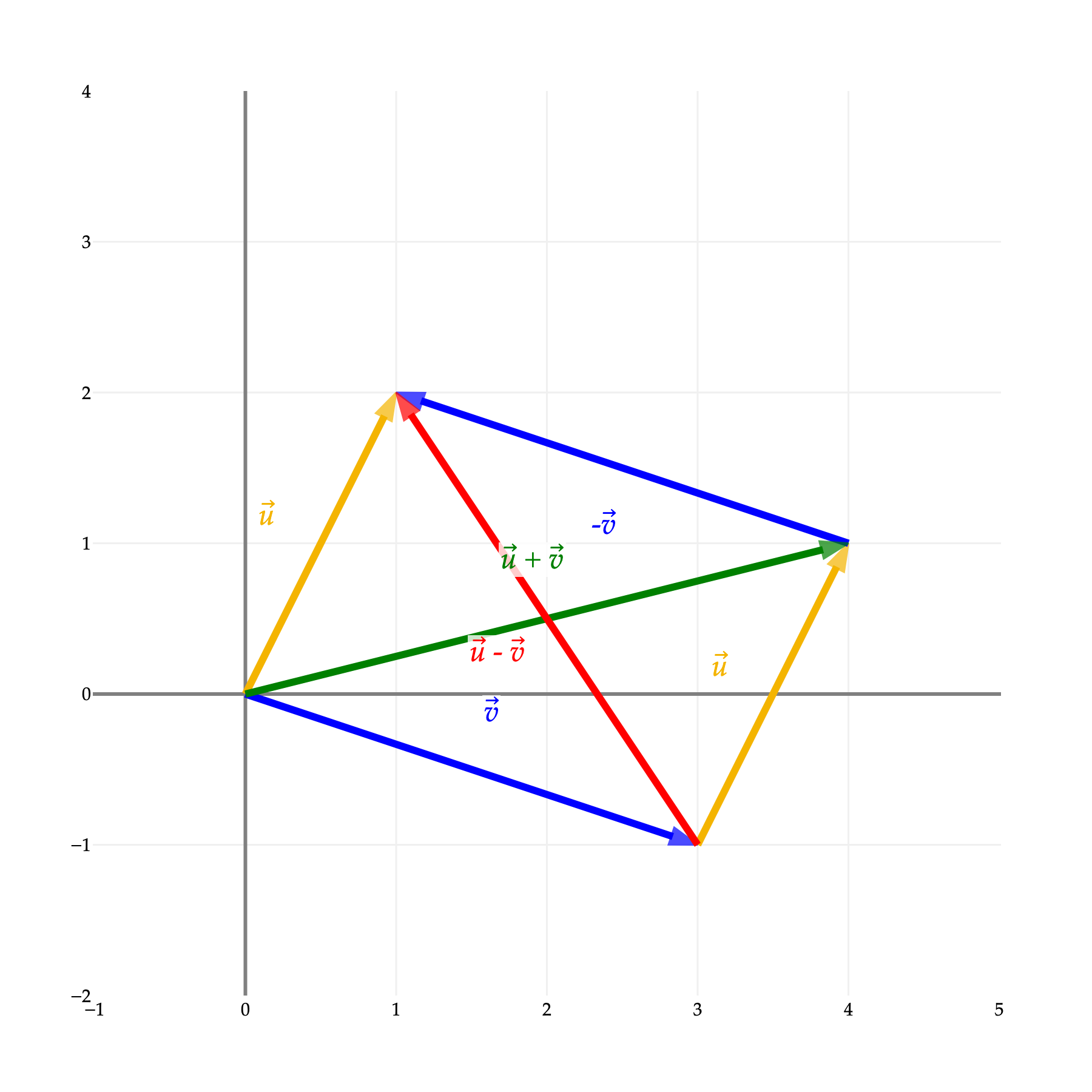

Vector addition and subtraction can be summarized by one picture involving a parallelogram, as it was hinted above. The following picture can be obtained by recalling that −v⃗-\vec v is simply the vector v⃗\vec v pointing in the opposite direction, and using our interpretation of vector addition as connecting two vectors.

vectors = [
    (((0, 0), (1, 2)), '#f4b400', '<i>u</i>\u20D7'),
    (((3, -1), (4, 1)), '#f4b400', '<i>u</i>\u20D7'),
    (((0, 0), (3, -1)), 'blue', '<i>v</i>\u20D7'),
    (((4, 1), (1 , 2)), 'blue', '<i>-v</i>\u20D7'),
    (((0, 0), (4, 1)), 'green', '<i>u</i>\u20D7 + <i>v</i>\u20D7'),
    (((3, -1), (1, 2)), 'red', '<i>u</i>\u20D7 - <i>v</i>\u20D7')
]

# Generate the figure using the custom utility
fig = plot_vectors_non_origin(vectors, vdeltax=0.4, vdeltay=0.4)


# Format the layout to keep the grid perfectly square
fig.update_layout(width=600, height=600, yaxis_scaleanchor="x")

# Set the grid to comfortably frame the entire parallelogram
fig.update_xaxes(range=[-1, 5], tickvals=np.arange(-1, 6))
fig.update_yaxes(range=[-2, 4], tickvals=np.arange(-2, 5))

# Export statically
fig.show(scale=3)
Image produced in Jupyter

In short, we can find the vector u⃗−v⃗\vec u - \vec v be connecting the endpoint of v⃗\vec v to the endpoint of u⃗\vec u.
